Posts & Fixings / Wholesale & project supply
Steel posts, continuous clamp bars and compatible fixings specified to match flat or profiled 358 mesh panels.
Post and continuous clamp-bar connection for 358 mesh — detail reference

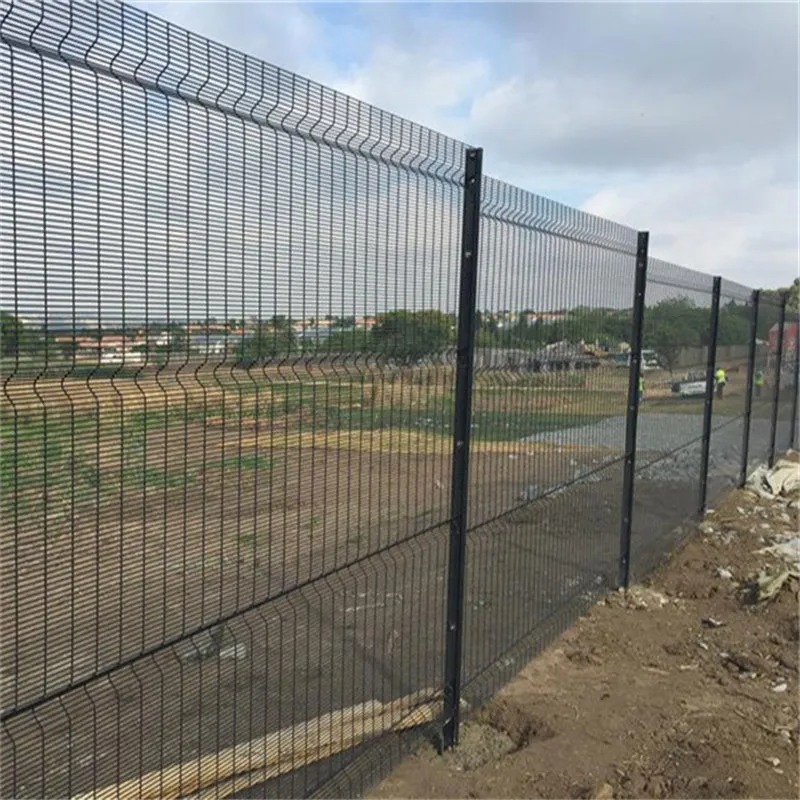

Reference photographs illustrate configurations and matching components, not KUNYU PERIMETER customer projects. The approved drawing defines the supplied dimensions and details.
At a glance
Add the details you know. Our team can help with the rest.
Product and selected options included in your enquiry.
Technical details
| Post section | Square or rectangular steel section selected for panel height, loading and mounting |
|---|---|
| Post length and wall | Confirm section, wall thickness, overall length and any embedment or base-plate detail |
| Post positions | Line, end, corner and gate-adjacent positions to the site layout |
| Clamp bars | Length, width, thickness and hole pitch to the panel and post connection drawing |
| Fixings | Bolt size, grade, length, nut type, washer and finish to the connection schedule |
| Post centres | Confirm installed centre distance separately from panel width |
| Finish | Galvanised or galvanised + powder coated; match the fence specification |
The product
Steel posts, continuous clamp bars and compatible fixings specified to match flat or profiled 358 mesh panels.
Prepare your enquiry
Provide the panel drawing, height and width, post centres, corner and terminal positions, and mounting method. For replacement parts, include photographs and measured section, wall, length and hole pitch; visually similar parts may not fit.
State the galvanising and coating requirements, colour, exposure conditions and applicable project specification. Agree wire, mesh, weld, dimensional and coating inspection points before production. Request product-specific reports where the contract requires them.
Provide the delivery country and port, unloading constraints and required delivery date. The quotation confirms bundle identification, protection, packing quantities, commercial terms and production schedule for the agreed order.
| Supply scope | List panels, posts, clamp bars, fixings and gates separately in the BOQ |
|---|---|
| Order confirmation | Approved drawings, component schedule, finish and inspection plan |
| MOQ and lead time | Confirmed in the quotation for the selected order |
Send your specification, quantity and destination.
Prepare a product enquiryBuyer questions
Submit the parts list, quantities and mating dimensions for review. Separate components must be checked against the existing panel and post connection.
A simple straight run generally requires posts at both ends as well as the intermediate positions. Corners, ends, gates and changes in level affect the schedule; use the site layout to confirm the total.
No. 358 describes the mesh format. Any specified security, impact or forced-entry rating must be supported by a valid report covering the complete proposed system. Supplier assessments do not establish a product security rating.
Send your specification, quantity, destination and project schedule. KUNYU PERIMETER coordinates export supply from China for importers, distributors and contractors; local installation and site engineering are arranged by the buyer or their appointed local contractor. The quotation defines the supplied components and delivery responsibilities.
These are quoted after the dimensions, component schedule, finish, order volume and destination have been reviewed. Ask for the packing list, inspection requirements and delivery terms with the quotation.
Flat close-aperture welded mesh panels with matching posts, clamp bars and gates for wholesale and project supply.
Close-aperture 358 mesh with V-profile bends, matched posts and fixings for profiled security fence enquiries.
Single-leaf pedestrian gates with 358 mesh infill, coordinated with the fence height, posts and access requirements.
Two-leaf vehicle gates with 358 mesh infill for perimeter entrances with sufficient swing clearance.
