Technical Downloads
Compare the construction details that belong in a fencing enquiry, then download the specification and order checklist.
A comparable quotation starts with a defined system. Record the infill, dimensions, posts, fixing method, finish, gate openings and inspection requirements on one drawing and component schedule.
Palisade Specification
Define W or D profile, pale thickness, head type, rail dimensions, post centres and fixing method. Include required finish and installation drawings.
Welded Mesh Specification
Define the mesh aperture, wire dimensions, panel size, post section and fixing arrangement. For 2D panels, specify both horizontal and vertical wire dimensions.
Gate Schedule
List clear opening width, leaf arrangement, height, infill, handing, latch and any automation interfaces. Confirm whether posts are in-ground or base-plated.
Zhejiang Kunyu Wiremesh Co., Ltd.
What to specify for each fencing system
| System | Construction | Key quotation details |
|---|---|---|
| Standard steel palisade | 17 W-section pales; 2 rails; 2,750 mm post centres | 1.8 / 2.0 / 2.4 m height; 2,710 mm × 50 × 50 mm box rails; matched posts and fixings |
| 358 mesh | Close-aperture welded panel; 76.2 × 12.7 mm nominal mesh option | Wire diameter, panel size, post centres, clamp bars and finish |
| 2D twin-wire | Flat panel with two horizontal wires and one vertical wire | All three wire diameters, aperture, panel size and fixing arrangement |
| 3D V-mesh | Welded panel with horizontal folds | Wire and aperture, number and position of folds, panel and post dimensions |
Technical downloads
- Standard W-section palisade specification (PDF)
Published bay components, height options and an enquiry checklist. Revision 23 September 2026.
- Fencing enquiry checklist (CSV)
A spreadsheet-ready schedule for dimensions, gates, finish, quantities and delivery details.
- 2D twin-wire specification and enquiry checklist (CSV)
656/868 wire schedules, panel dimensions, gate openings, post and fixing details, coating and export-order inputs.
- 358 mesh, gates and components enquiry checklist (CSV)
Panel dimensions, gate openings, post and fixing schedules, finish, packing and destination.
Supporting information
Frequently Asked Questions
Are post centres the same as rail length?

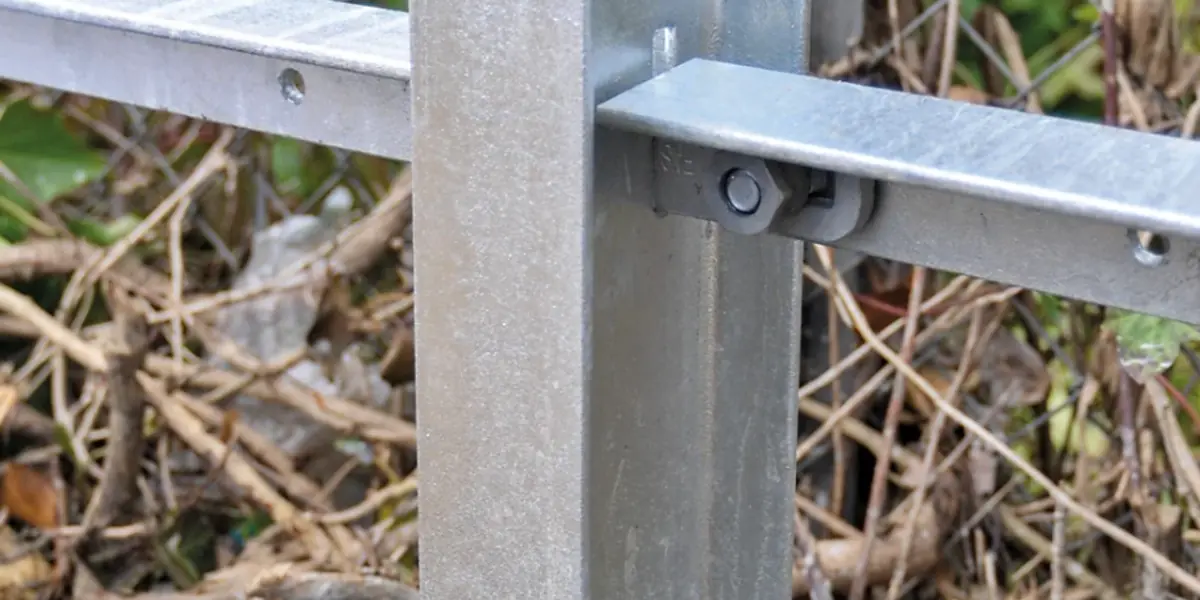

No. In the published standard palisade system the nominal post centres are 2,750 mm, while each box-section rail is 2,710 mm long. Use the approved connection drawing when ordering components.
Does a supplier assessment certify every fencing product?
No. Supplier assessments describe the assessed business and scope. Product certificates and test reports must match the exact product, configuration and order requirement.
What should the enquiry include if the design is unfinished?
Provide the application, boundary layout, required height, approximate quantity and destination. Identify which dimensions, finish or performance requirements still need to be agreed.
