Fence Systems / Wholesale & project supply

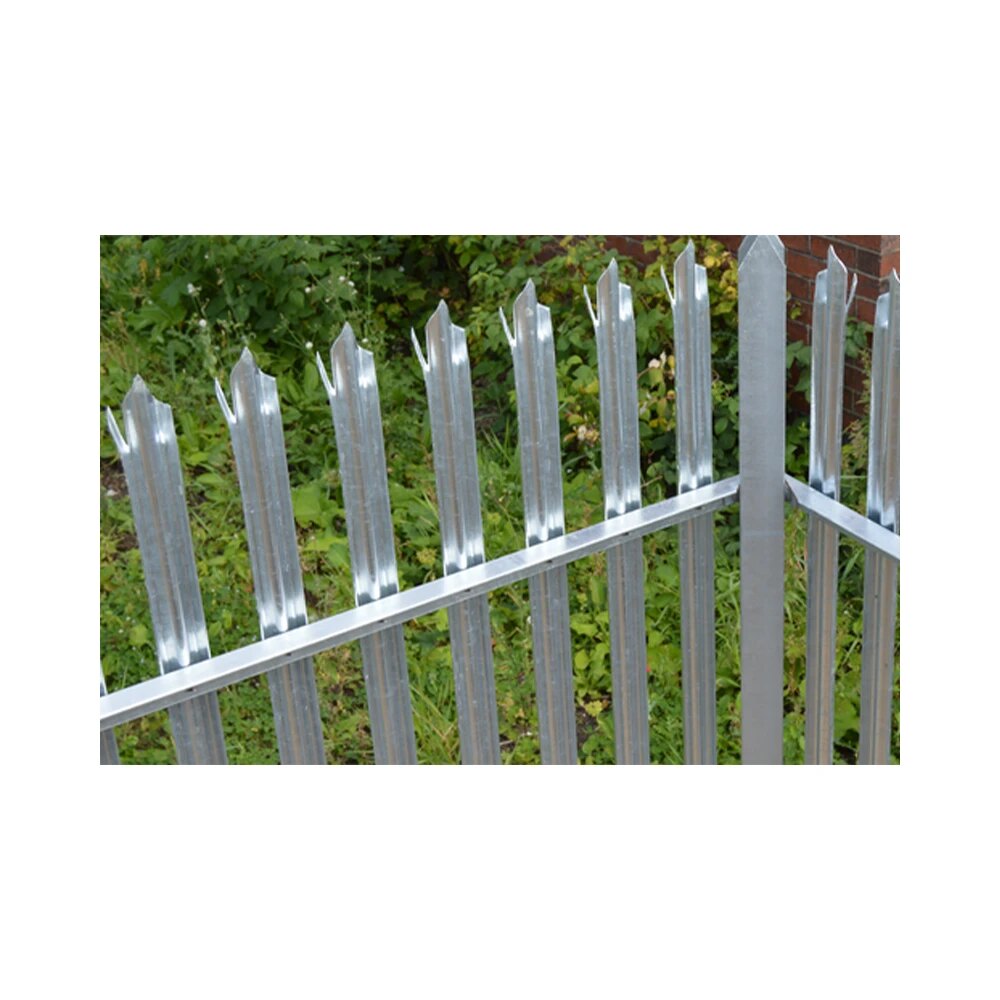

Complete steel bays with matched pales, rails, posts and security fixings.

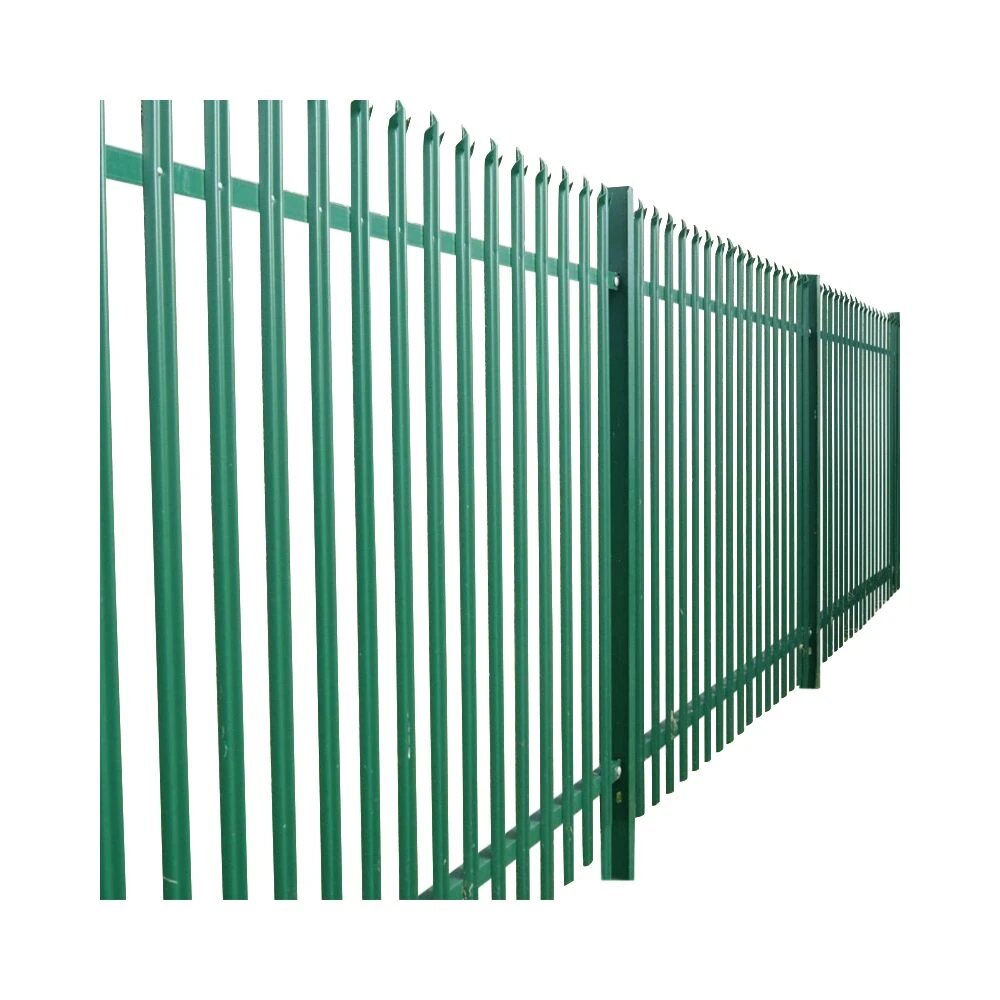

Installed green W-section palisade fencing
At a glance
Add the details you know. Our team can help with the rest.
Product and selected options included in your enquiry.
Specification PDFTechnical details
| Nominal post centres | 2750 mm |
|---|---|
| Pales per bay | 17 × 2.0 mm W-section steel pales |
| Pale lengths | 1750 / 1950 / 2350 mm for 1.8 / 2.0 / 2.4 m fence heights |

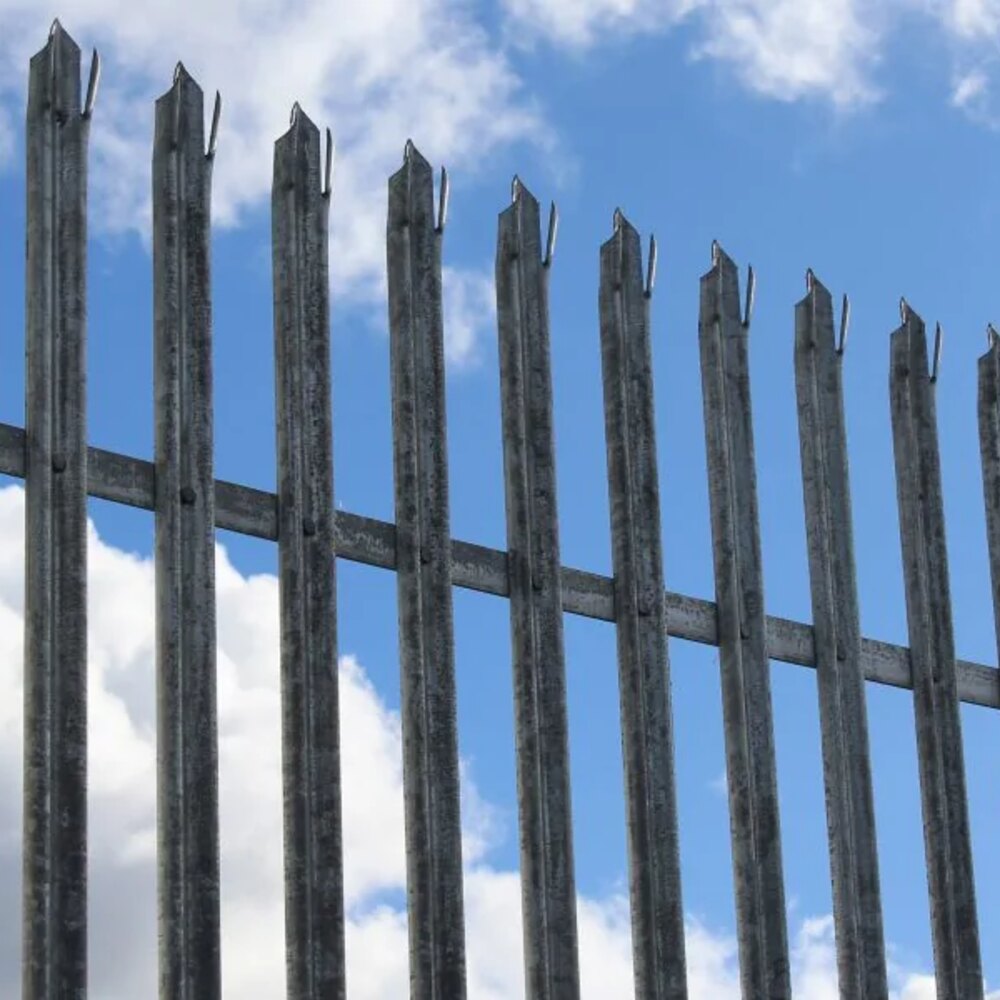

| Pale head | Triple-point, splayed |

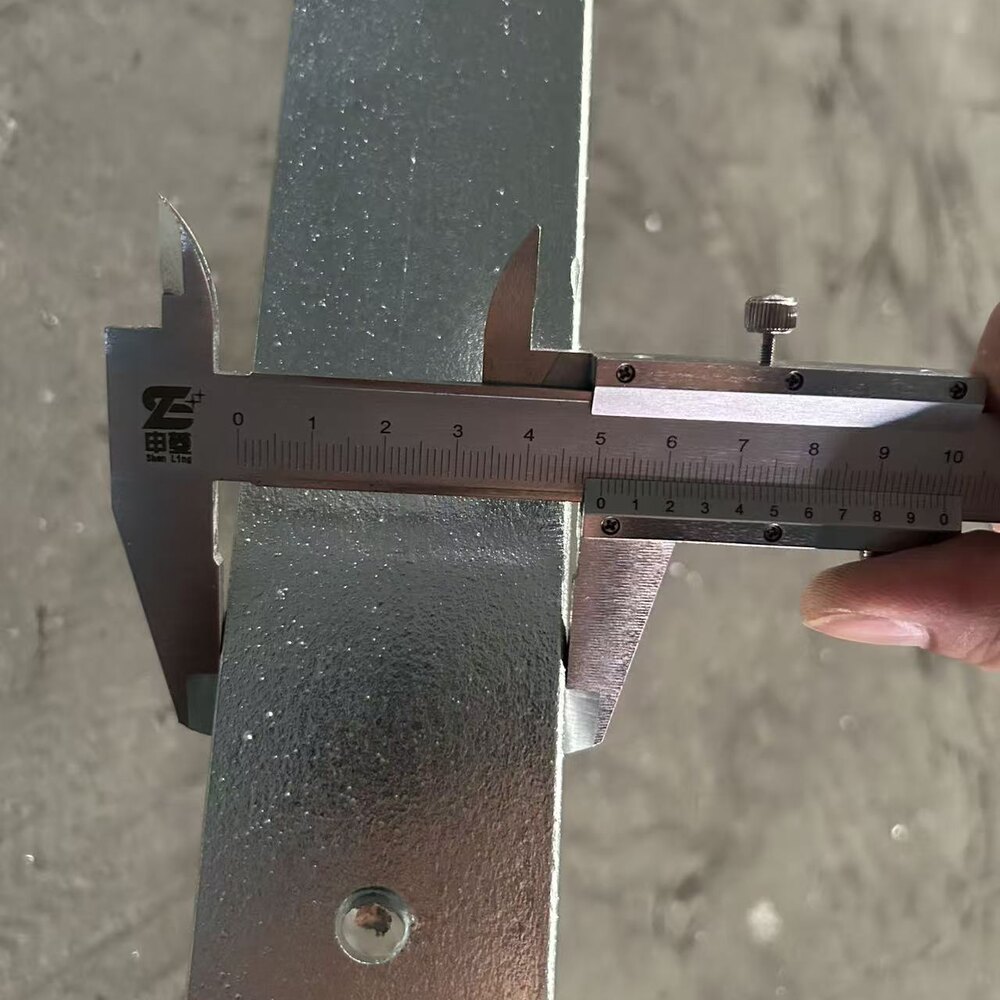

| Rails per bay | 2 × 2710 mm rails, 50 × 50 mm steel box section |
| Post allocation | 1 matching post per standard bay; 2325 / 2600 / 3125 mm options for 1.8 / 2.0 / 2.4 m fences |
| Fixings per bay | 2 fishplates, 34 × M8 pale fixings and 4 × M12 rail fixings with security nuts |
| Finish | Hot-dip galvanised; powder-coated colours available |
| Fence height | Pale length | Post length | Rail length / profile |
|---|---|---|---|
| 1.8 m | 1750 mm | 2325 mm | 2710 mm / 50 × 50 mm |
| 2.0 m | 1950 mm | 2600 mm | 2710 mm / 50 × 50 mm |
| 2.4 m | 2350 mm | 3125 mm | 2710 mm / 50 × 50 mm |
Illustrative component calculation using the published 2.75 m standard bay. This is an order-planning example, not an MOQ, packing quantity or container-loading claim.
| Component | Per standard bay | 100-bay allocation |
|---|---|---|
| W-section pales | 17 | 1,700 |
| 2710 mm box-section rails | 2 | 200 |
| Matched post allocation | 1 | 100; complete the post schedule from the layout |
| Fishplates | 2 | 200; check end and corner connection types |
| M8 pale fixings | 34 | 3,400 |
| M12 rail fixings | 4 | 400 |
100 full bays represent 275 m of nominal post-centre run. A single straight open run of 100 bays requires 101 post positions: schedule the terminal arrangement in addition to the 100-post bay allocation. Corners, gates, slopes, partial bays and spare fixings require a separate drawing-based count.
The product
The standard system is available for 1.8 m, 2.0 m and 2.4 m fence heights. Specify the required height, total metres or bay quantity, surface finish, gate schedule and destination so the final component schedule, order drawing, packing and production timing can be confirmed with the quotation.
Prepare your enquiry
Each standard bay contains 17 W-section pales, two 2710 mm × 50 × 50 mm rails, one matched post and one coordinated fixing set. The standard fixing schedule uses two fishplates, 34 M8 pale fixings and four M12 rail fixings with security nuts.
Use 2325 mm posts with the 1.8 m system, 2600 mm posts with the 2.0 m system and 3125 mm posts with the 2.4 m system. Confirm embedment, corner posts and terminal posts from the installation layout.
The standard rail is 2710 mm long and 50 × 50 mm box section. Two rails are used per bay and should be ordered with the matching posts, pales and fixing kit.
Send the fence height, total metres or bay quantity, finish, gate schedule and destination. We confirm the component schedule, production drawing, packing and lead time with the quotation.
| Supply model | Manufacturer supply for wholesale, distributor and project orders |
|---|---|
| Standard bay scope | 17 W-section pales, 2 rails, 1 matching post allocation and 1 coordinated fixing set |
| Required enquiry details | Fence height, total metres or bay quantity, finish, gate schedule and destination |
| Confirmed with quotation | Final component schedule, production drawing, packing and production timing |
Ordering for a UK distributor or project? Review complete palisade fencing supplies and UK bulk quotation requirements to coordinate this product with matching components, packing and delivery scope.
Send your specification, quantity and destination.
Prepare a product enquiryBuyer questions
Yes. Include the required fence bays, posts, pales, rails, fixings and gates in one enquiry so that we can quote a coordinated supply package.
We review your selected specification and destination before quoting. Gate openings, embedded post lengths and any custom details are confirmed on the order drawing.
Yes. KUNYU supplies complete steel palisade fencing systems and individual components for wholesale, distributor and project orders. Send the height, total metres or bay quantity, finish, gate schedule and destination for quotation.
Green and other powder-coated colour requirements can be reviewed for relevant steel products. State the requested colour reference and coating requirement; availability and the final coating specification are confirmed in the quotation.
Check whether the quotation identifies the steel pale profile and thickness, head style, rail and post system, security fixings, gates, finish, packing and inspection scope. A complete comparison must use the same bay configuration and delivery scope.
Ask for the matched component schedule, finish requirement, order drawing, packing method and inspection scope for the selected system. KUNYU confirms product-specific production details and timing in the quotation.
For a single straight open run without gates, N bays require N + 1 post positions. The published one-post-per-bay allocation does not by itself complete the terminal arrangement. Identify the end, intermediate, corner and gate posts on the layout before ordering.
Matched intermediate posts for standard palisade fencing in 2325, 2600 and 3125 mm lengths.
Rail component2710 mm × 50 × 50 mm steel box-section rails for standard 2.75 m palisade bays.
Fishplates, pale bolts and rail fixings for one standard 17-pale bay.
2.0 mm W-section steel pales for replacing individual pales or assembling complete fencing bays.
