Pales & Rails / Wholesale & project supply
2.0 mm W-section steel pales for replacing individual pales or assembling complete fencing bays.

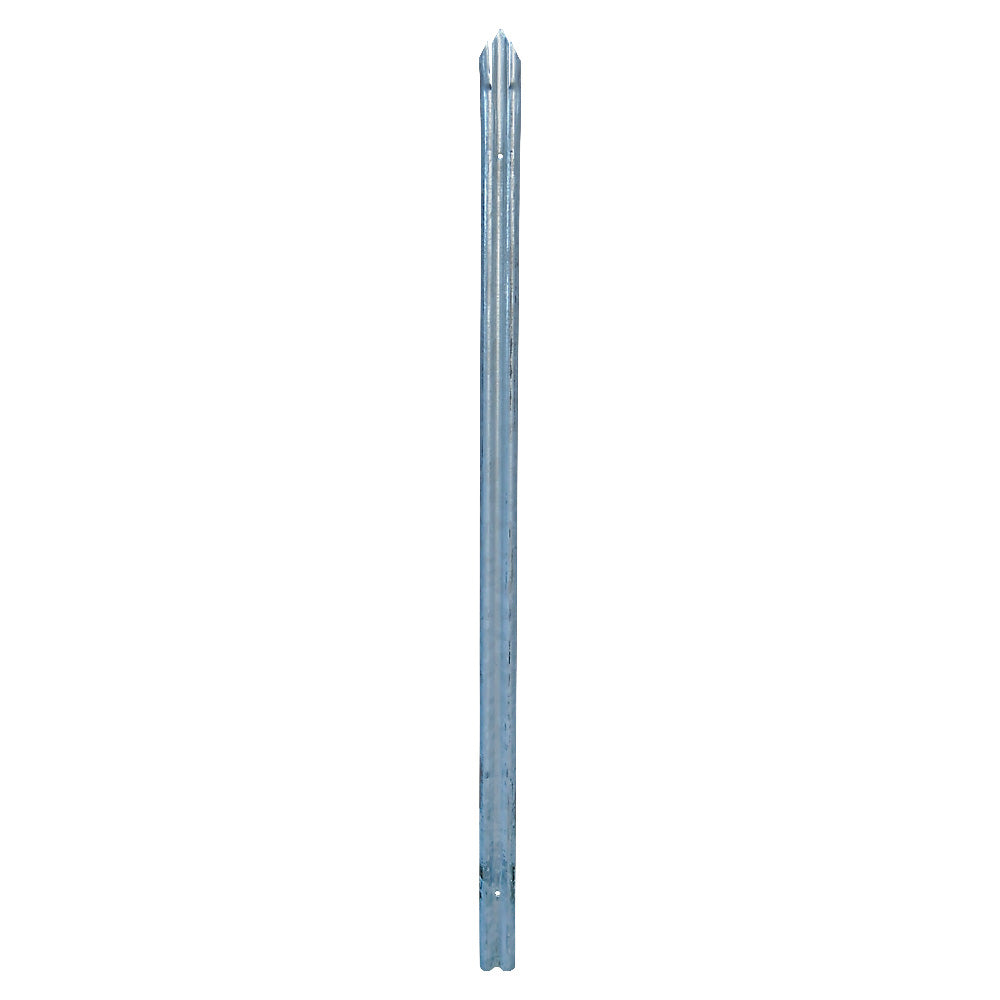

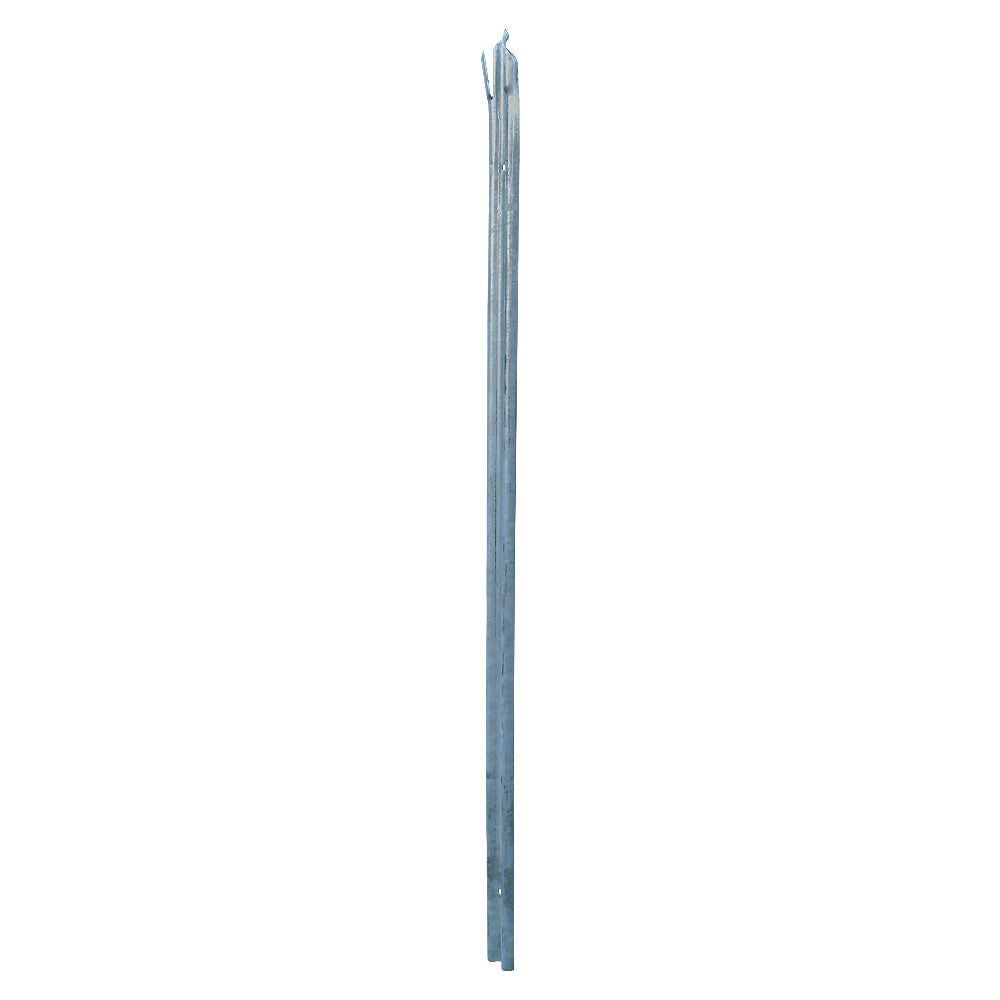

W-section triple-point pale head
Gallery includes component views and matching system references. Connection details are confirmed on the order drawing.
At a glance
Add the details you know. Our team can help with the rest.
Product and selected options included in your enquiry.
Technical details
| Material | Mild steel |
|---|---|

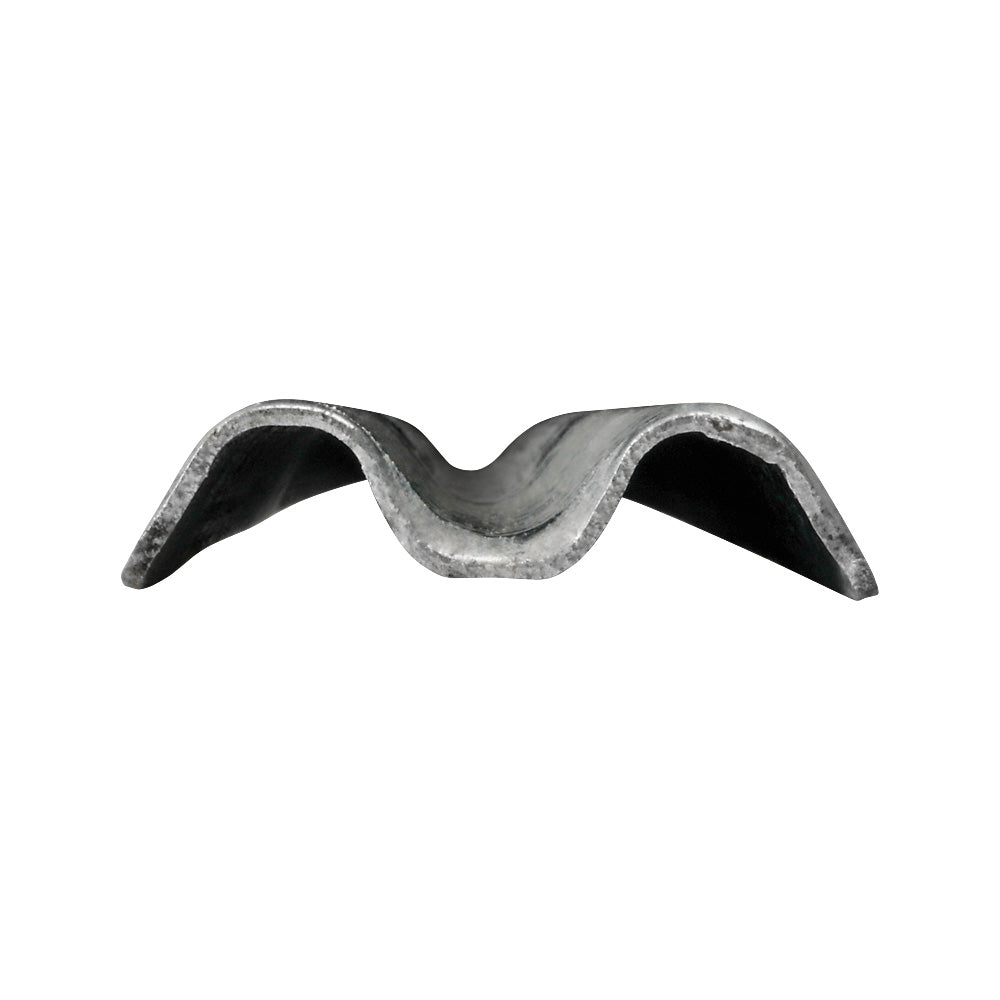

| Profile | W-section, 70 mm nominal width |
| Thickness | 2 mm |
| Head | Triple-point, splayed |
| Pales per standard bay | 17 |
| Pale lengths | 1750 / 1950 / 2350 mm |
| Fixings | Pre-drilled; hole centres to agreed drawing |
| Nominal ground clearance | 50 mm for the listed fence-height configurations |
| Fence height | Actual pale length | Nominal unit weight |
|---|---|---|
| 1.8 m | 1750 mm | 2.4 kg |
| 2.0 m | 1950 mm | 2.67 kg |
| 2.4 m | 2350 mm | 3.22 kg |
The product
KUNYU manufactures standard palisade pales for distributors, fencing contractors and project buyers. 2.0 mm W-section steel pales for replacing individual pales or assembling complete fencing bays.
Prepare your enquiry
A 1.8 m fence uses a 1750 mm pale in the listed system; the remaining 50 mm is nominal ground clearance. The table gives weights for the listed galvanised 2 mm W-section models. Confirm hole centres when replacing individual pales.
Specify the dimensions, finish, quantity and destination, together with drawings or a bill of quantities. We confirm the component schedule, packing and production timing in the quotation.
For replacement parts or additions to an existing fence, send the rail profile, hole centres and connection details. Posts, pales, rails and gate fittings are matched to the agreed drawing.
Ordering for a UK distributor or project? Review complete palisade fencing supplies and UK bulk quotation requirements to coordinate this product with matching components, packing and delivery scope.
Send your specification, quantity and destination.
Prepare a product enquiryBuyer questions
Yes. Include the required fence bays, posts, pales, rails, fixings and gates in one enquiry so that we can quote a coordinated supply package.
We review your selected specification and destination before quoting. Gate openings, embedded post lengths and any custom details are confirmed on the order drawing.
Complete steel bays with matched pales, rails, posts and security fixings.
Matched intermediate posts for standard palisade fencing in 2325, 2600 and 3125 mm lengths.
Rail component2710 mm × 50 × 50 mm steel box-section rails for standard 2.75 m palisade bays.
Fishplates, pale bolts and rail fixings for one standard 17-pale bay.
