Posts / Wholesale & project supply
Matched intermediate posts for standard palisade fencing in 2325, 2600 and 3125 mm lengths.

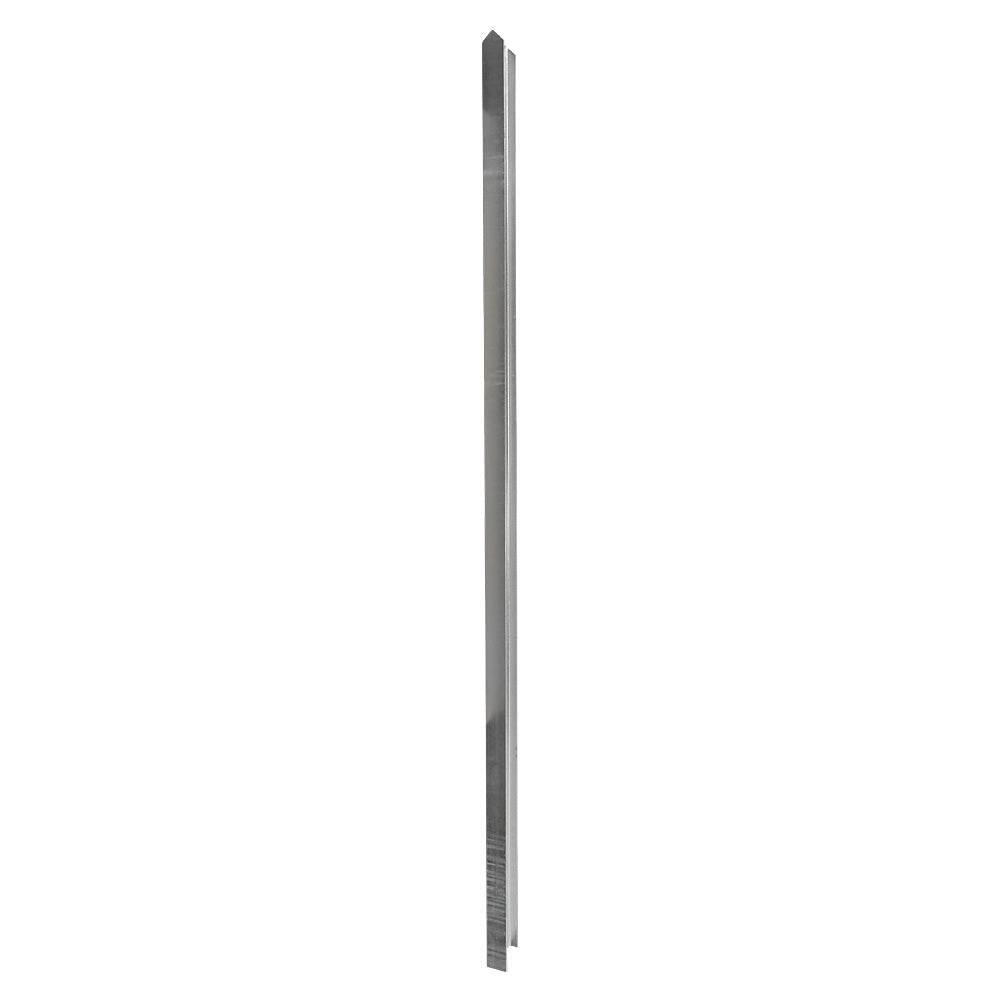

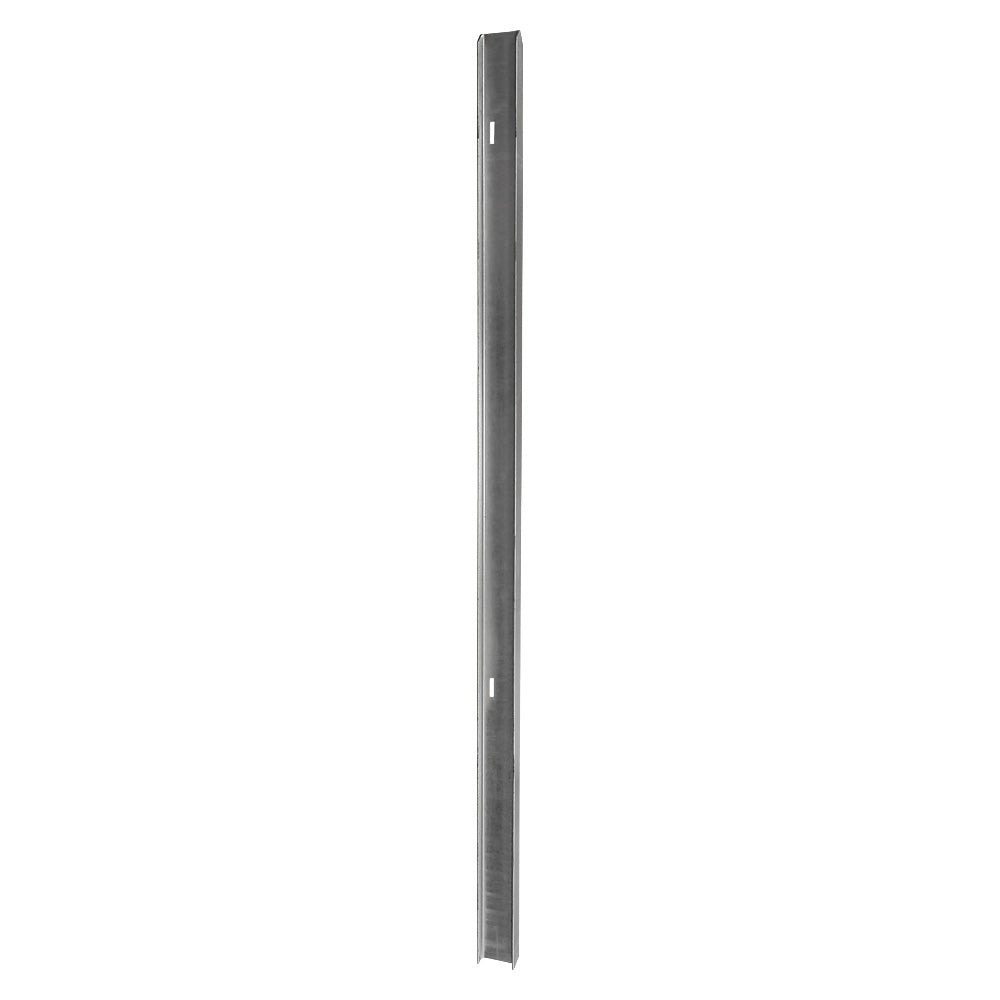

Galvanised RSJ post profile
Gallery includes component views and matching system references. Connection details are confirmed on the order drawing.
At a glance
Add the details you know. Our team can help with the rest.
Product and selected options included in your enquiry.
Technical details
| Standard post section | 100 × 55 mm IPE |
|---|---|
| Post lengths | 2325 / 2600 / 3125 mm |
| Matched fence heights | 1.8 / 2.0 / 2.4 m |
| Material | Steel |
| Mounting | Excavated / in-ground; embedment to installation design |

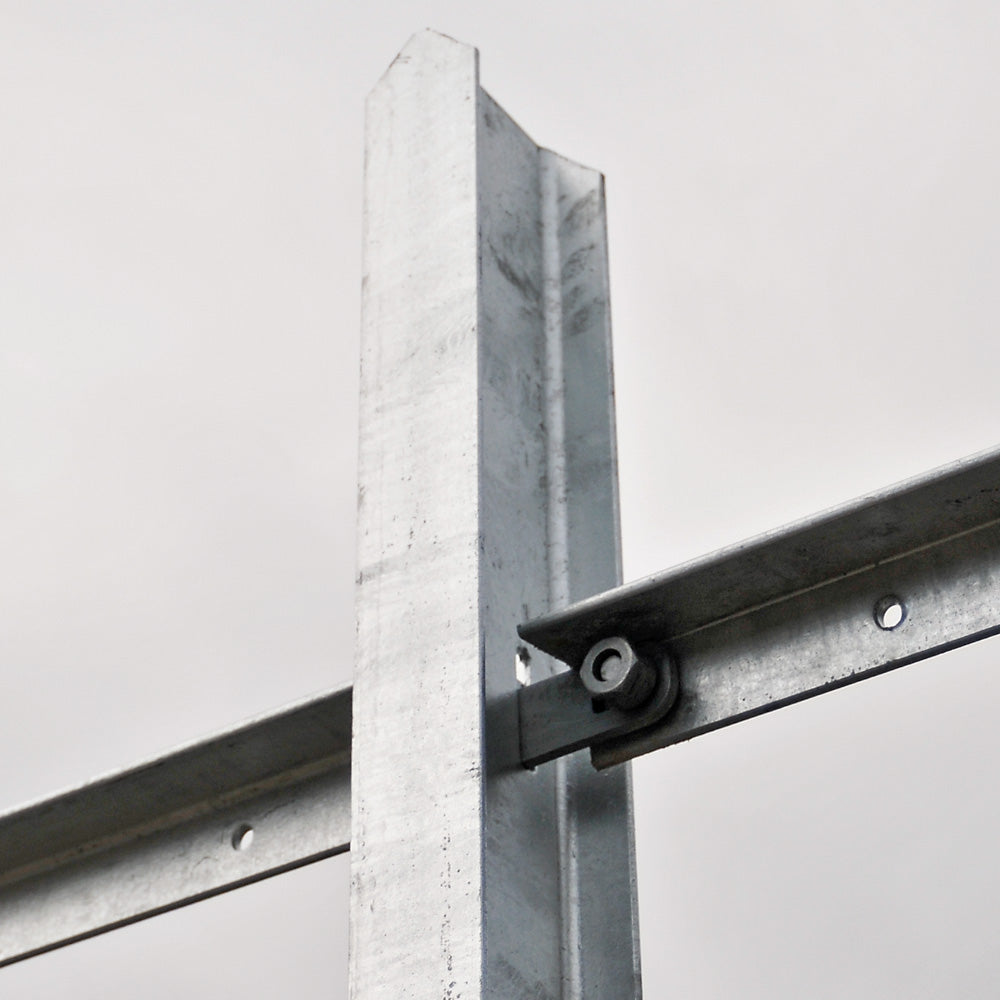

| Connection | Rail slots and fishplates matched to the standard system |
| Fence height | Overall post length | Standard section |
|---|---|---|
| 1.8 m | 2325 mm | 100 × 55 mm IPE |
| 2.0 m | 2600 mm | 100 × 55 mm IPE |
| 2.4 m | 3125 mm | 100 × 55 mm IPE |
The product
KUNYU supplies standard palisade intermediate posts for distributors, contractors and project buyers. The matched post lengths are 2325 mm for 1.8 m fencing, 2600 mm for 2.0 m fencing and 3125 mm for 2.4 m fencing.
Prepare your enquiry
Select 2325 mm for 1.8 m fencing, 2600 mm for 2.0 m fencing and 3125 mm for 2.4 m fencing. Confirm embedment and foundation requirements against the site installation design.
Specify fence height, post quantity, finish and destination. For replacement work, send rail connection heights and existing post details so the system can be matched.
Ordering for a UK distributor or project? Review complete palisade fencing supplies and UK bulk quotation requirements to coordinate this product with matching components, packing and delivery scope.
Send your specification, quantity and destination.
Prepare a product enquiryBuyer questions
Yes. Include the required fence bays, posts, pales, rails, fixings and gates in one enquiry so that we can quote a coordinated supply package.
We review your selected specification and destination before quoting. Gate openings, embedded post lengths and any custom details are confirmed on the order drawing.
Complete steel bays with matched pales, rails, posts and security fixings.
Rail component2710 mm × 50 × 50 mm steel box-section rails for standard 2.75 m palisade bays.

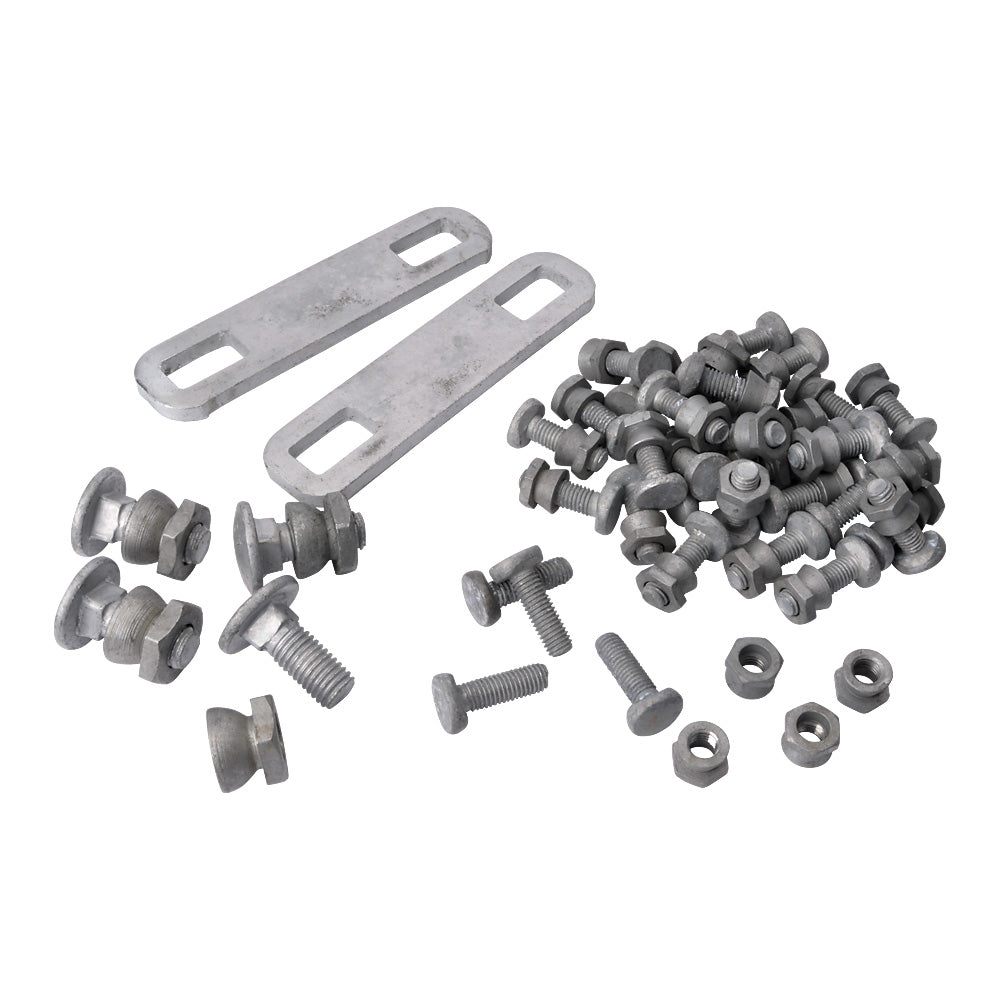

Fishplates, pale bolts and rail fixings for one standard 17-pale bay.
Galvanised steel connection plates for intermediate posts between adjoining fence bays.
