Gates / Wholesale & project supply
Single-leaf pedestrian gates with 358 mesh infill, coordinated with the fence height, posts and access requirements.
Single-leaf 358 pedestrian gate — gate configuration reference

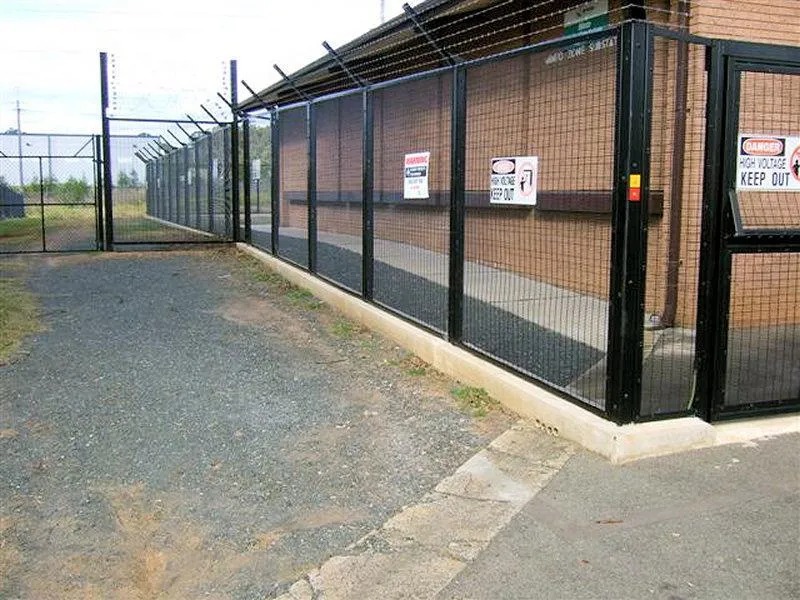

Reference photographs illustrate configurations and matching components, not KUNYU PERIMETER customer projects. The approved drawing defines the supplied dimensions and details.
At a glance
Add the details you know. Our team can help with the rest.
Product and selected options included in your enquiry.
Technical details
| Nominal mesh | 76.2 × 12.7 mm; confirm orientation and whether the drawing specifies pitch or clear aperture |
|---|---|
| Wire diameter | 4.0 mm nominal reference for 358 mesh; bare-wire diameter and tolerance to be agreed |
| Finish | Galvanised or galvanised + powder coated; coating specification and colour to order |
| Clear opening | Specify the required width between posts; 1.0 / 1.2 / 1.5 m can be submitted for review |
| Gate height | State gate leaf height, adjacent fence height and ground clearance separately |
| Frame and gate posts | Steel sections and wall thickness selected for the opening, weight, hardware and site loads |
| Hinges and access | Specify handing, opening direction, latch or lock, closer and access-control requirements |
| Mounting | Dig-in or base-plated arrangement subject to the foundation and site design |
The product
Single-leaf pedestrian gates with 358 mesh infill, coordinated with the fence height, posts and access requirements.
Prepare your enquiry
Provide clear opening, height, gate quantity, handing and swing direction. Mark levels, clearance, hinges, locks, closers and any access-control or emergency-egress requirements. Hardware is included only where the quotation lists it.
State the galvanising and coating requirements, colour, exposure conditions and applicable project specification. Agree wire, mesh, weld, dimensional and coating inspection points before production. Request product-specific reports where the contract requires them.
Provide the delivery country and port, unloading constraints and required delivery date. The quotation confirms bundle identification, protection, packing quantities, commercial terms and production schedule for the agreed order.
| Supply scope | List panels, posts, clamp bars, fixings and gates separately in the BOQ |
|---|---|
| Order confirmation | Approved drawings, component schedule, finish and inspection plan |
| MOQ and lead time | Confirmed in the quotation for the selected order |
Send your specification, quantity and destination.
Prepare a product enquiryBuyer questions
No. Clear opening is the usable distance between the gate posts. Leaf width depends on hinge, latch and clearance details. Both dimensions must be shown on the approved drawing.
Include the fence height, finish, mesh orientation and post details in the same enquiry so the gate interface can be coordinated.
No. 358 describes the mesh format. Any specified security, impact or forced-entry rating must be supported by a valid report covering the complete proposed system. Supplier assessments do not establish a product security rating.
Send your specification, quantity, destination and project schedule. KUNYU PERIMETER coordinates export supply from China for importers, distributors and contractors; local installation and site engineering are arranged by the buyer or their appointed local contractor. The quotation defines the supplied components and delivery responsibilities.
These are quoted after the dimensions, component schedule, finish, order volume and destination have been reviewed. Ask for the packing list, inspection requirements and delivery terms with the quotation.
Flat close-aperture welded mesh panels with matching posts, clamp bars and gates for wholesale and project supply.
Close-aperture 358 mesh with V-profile bends, matched posts and fixings for profiled security fence enquiries.
Two-leaf vehicle gates with 358 mesh infill for perimeter entrances with sufficient swing clearance.
Vehicle access gates with 358 mesh infill, specified around the clear opening, run-back space and supporting system.
