Plan a double-leaf mesh gate with the clear opening, leaf arrangement, posts and manual hardware defined in one drawing.
Front view of a double swing gate; hardware arrangement is a reference only.

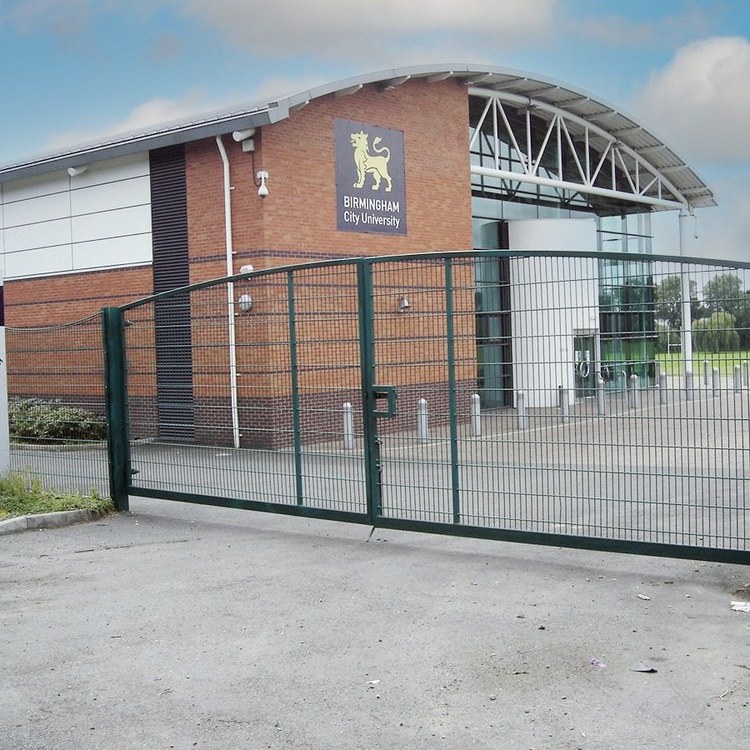

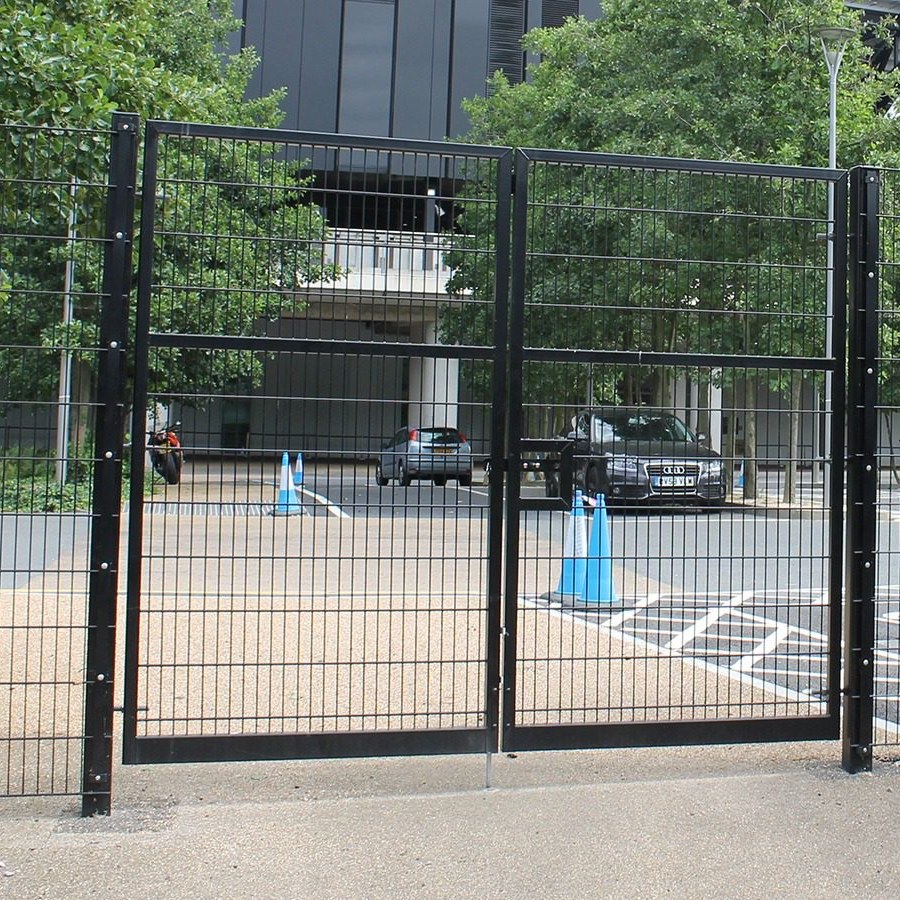

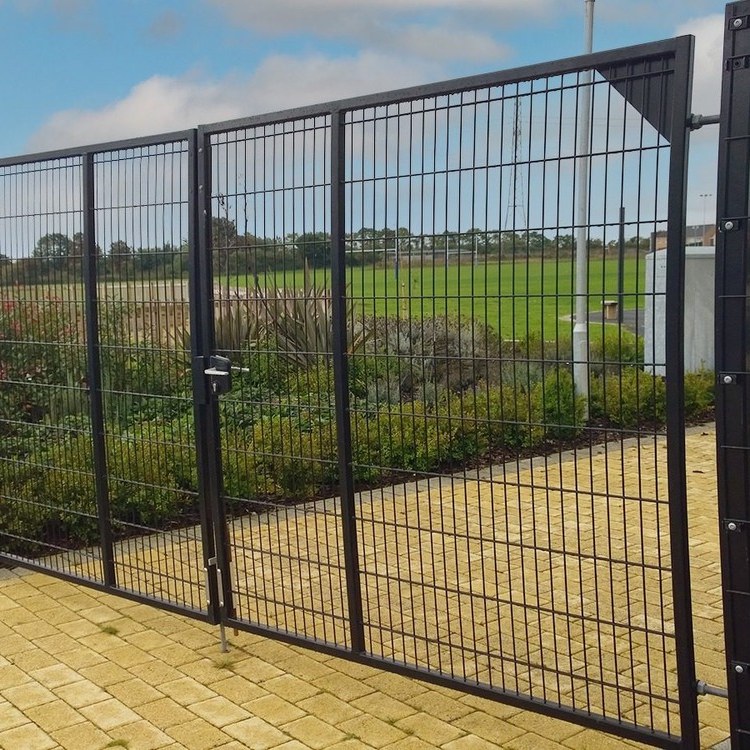

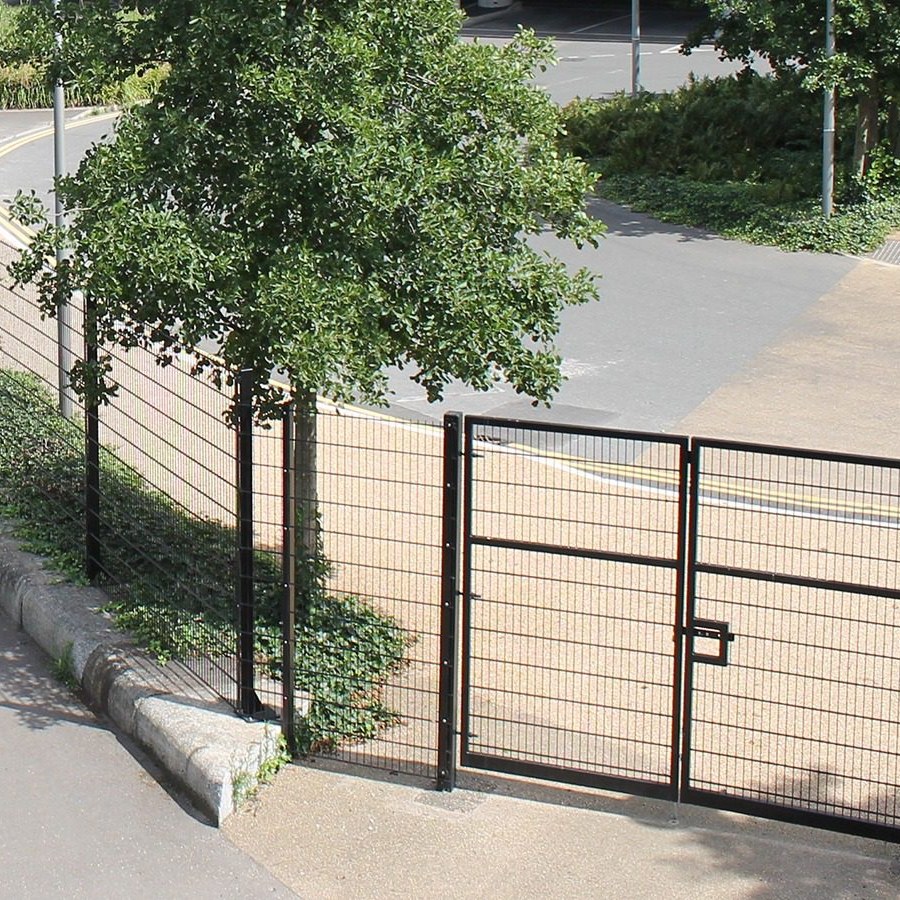

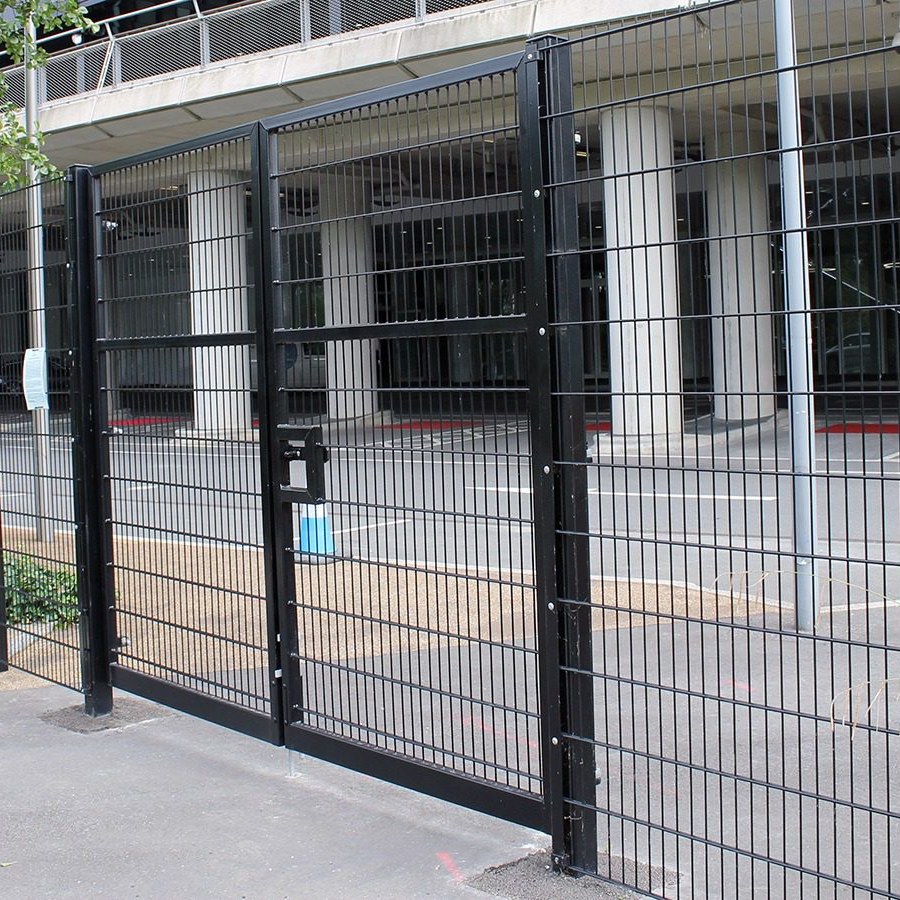

Photographs illustrate product configurations and connection details; they are not presented as KUNYU customer projects.
At a glance
Add the details you know. Our team can help with the rest.
Product and selected options included in your enquiry.
Technical details
Nominal reference configurations for quotation. The order specification and approved drawing confirm dimensions, tolerances, coating and the complete supply scope.
| Gate type | Double-leaf vehicle swing gate with twin-wire mesh infill. |
|---|---|
| Clear opening reference | 3000 mm total clear opening for the reference configuration. |
| Wider opening enquiries | 4000 / 5000 / 6000 mm requirements reviewed against a separate gate drawing. |
| Gate height enquiry | 1800 / 2000 / 2400 mm nominal; actual leaf height and clearances by drawing. |
| Infill wire options | 656 (2 × 6 / 5 mm) or 868 (2 × 8 / 6 mm). |
| Nominal infill mesh H × W | 200 × 50 mm |
| Leaf arrangement | Equal or unequal leaves to suit the required clear opening and operating space. |
| Frame reference | 50 × 50 mm appears in a published 3000 mm gate reference; final frame, wall and reinforcement are design-specific. |
| Gate support | 2 designed gate posts with matched hinges; sections and foundations depend on span, height and site conditions. |
| Hardware scope | Hinges, centre locking arrangement, drop bolts, stops and leaf restraints as scheduled. |
| Surface treatment | Galvanised or galvanised + polyester powder coating; agree the galvanising sequence and coating requirements. |
| Colour references | RAL 6005 green / RAL 7016 anthracite / RAL 9005 black; other colours by enquiry. |
| Total clear opening | Height enquiries | Leaf arrangement | Status |
|---|---|---|---|
| 3000 mm | 1800 / 2000 / 2400 mm | Double leaf | Reference quotation configuration |
| 4000 / 5000 / 6000 mm | To project specification | Equal or unequal leaves | Drawing-based enquiry; design review required |
A frame section from a smaller gate is not an installation specification for wider openings. Powered operation and safety equipment require a separate scope.
The product
Use this page for double-leaf vehicle access gates that need to match a twin-wire fence line. Send the required total clear opening, gate height and the preferred split between the leaves. Site slope, available swing space and vehicle clearance affect the final arrangement. Frame and post sections cannot be selected from a small pedestrian gate specification. Hinges, leaf stops, drop bolts and the centre locking arrangement should be shown on the approved drawing. Powered operation and safety equipment require a separate scope.
Prepare your enquiry
Service yards; industrial vehicle entrances; maintenance access; commercial premises. Select the final system against the site specification and installation design.
Use this page for double-leaf vehicle access gates that need to match a twin-wire fence line. Send the required total clear opening, gate height and the preferred split between the leaves. Site slope, available swing space and vehicle clearance affect the final arrangement. Frame and post sections cannot be selected from a small pedestrian gate specification. Hinges, leaf stops, drop bolts and the centre locking arrangement should be shown on the approved drawing. Powered operation and safety equipment require a separate scope.
Packing quantities, order minimum, lead time, trade terms and payment terms are confirmed in the quotation after the specification and destination are reviewed. Panel bundles, post bundles, gate frames and small fixing packs should have separate counts and package identification.
| Order unit | Panels, posts, fixing sets or gate sets as listed in the quotation. |
|---|---|
| MOQ & lead time | Confirmed for the selected specification, quantity and production schedule. |
| Packing | Agree pallet or frame protection, separators, strapping and package labels before dispatch. |
| Packing quantities & weights | Confirmed from the actual supplied dimensions and packing schedule. |
| Commercial terms | Currency, trade term, named delivery place and payment terms stated in the quotation. |
| Inspection | Agree dimensional, wire, weld, finish and packing checks for the order. |
Send your specification, quantity and destination.
Prepare a product enquiryBuyer questions
State the total clear opening and the desired split between the leaves. Add the height, swing direction, ground profile, available swing space and manual or powered operation requirement.
Do not assume this. Frame members, reinforcement, posts, hinges and foundations depend on the leaf span, height, infill and site conditions. The final supply drawing defines these items.
Only when they are explicitly itemised in the agreed scope. A mesh gate quotation does not automatically include powered operators, controls, detection or installation.
Send the product and quantity, destination country or port, selected finish and the relevant panel or gate schedule. Include project drawings, required inspection scope and the target delivery date.
Panel, post, gate and fixing quantities are reviewed separately. The quotation records packing protection, package identification, net and gross weights, commercial terms and the production schedule for the agreed specification.
