Plan a single-leaf pedestrian gate around the clear passage width, fence height and locking requirement. Review the mesh infill and gate posts together.

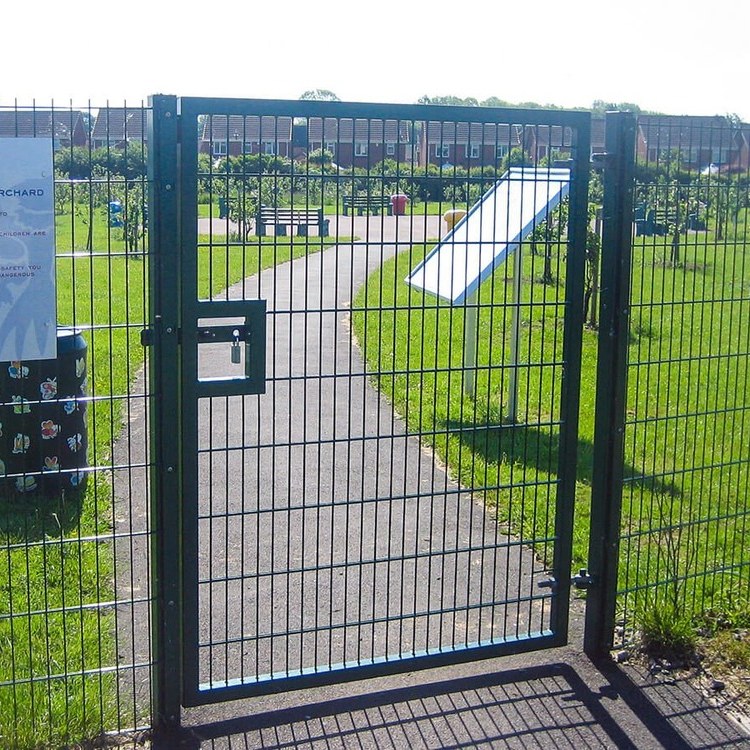

Green twin-wire pedestrian gate reference; confirm infill and clear opening in a drawing.

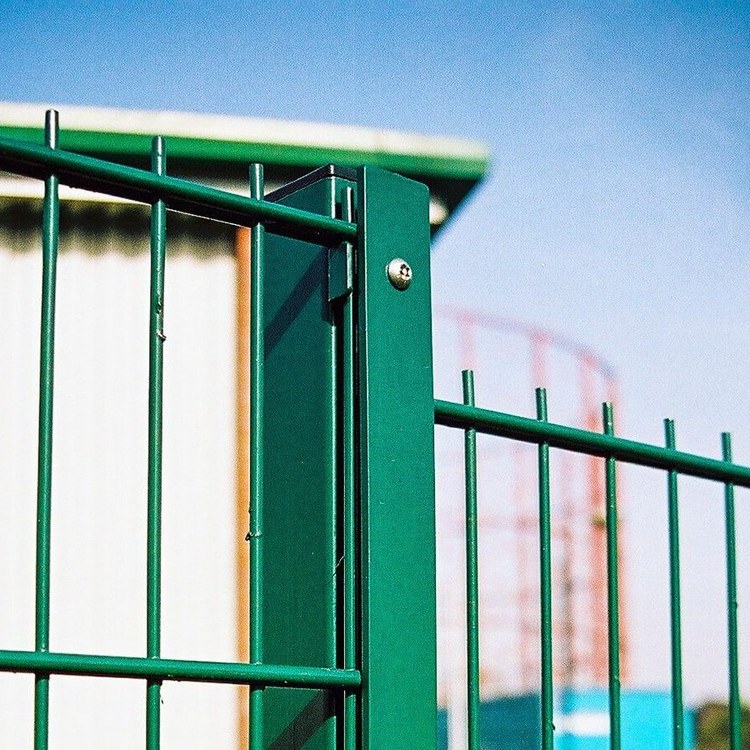

Photographs illustrate product configurations and connection details; they are not presented as KUNYU customer projects.
At a glance
Add the details you know. Our team can help with the rest.
Product and selected options included in your enquiry.
Technical details
Nominal reference configurations for quotation. The order specification and approved drawing confirm dimensions, tolerances, coating and the complete supply scope.
| Gate type | Single-leaf pedestrian swing gate with twin-wire mesh infill. |
|---|---|
| Clear opening reference | 1200 mm; leaf width and overall post-to-post dimensions are separate. |
| Gate height enquiry | 1800 / 2000 / 2400 mm nominal; define leaf height and ground clearance on the drawing. |
| Infill wire options | 656 (2 × 6 / 5 mm) or 868 (2 × 8 / 6 mm), to the selected fence schedule. |
| Nominal infill mesh H × W | 200 × 50 mm |
| Frame section reference | 50 × 50 mm steel hollow section; wall thickness and reinforcement by approved gate design. |
| Gate posts | 2 matched gate posts; section, wall, length and foundations by the gate design. |
| Hardware scope | Hinges, latch/lock and stops; closer or access-control interface to be specified. |
| Opening arrangement | Define handing, swing direction and available opening space. |
| Surface treatment | Galvanised or galvanised + polyester powder coating; agree the galvanising sequence and coating requirements. |
| Colour references | RAL 6005 green / RAL 7016 anthracite / RAL 9005 black; other colours by enquiry. |
| Clear opening | Height enquiries | Infill | Confirm separately |
|---|---|---|---|
| 1200 mm | 1800 / 2000 / 2400 mm | 656 or 868 | Leaf size; ground clearance; frame wall; hinges and posts |
Reference opening and height choices are enquiry inputs. Powered operation, closers and electronic access control are separate agreed scopes.
The product

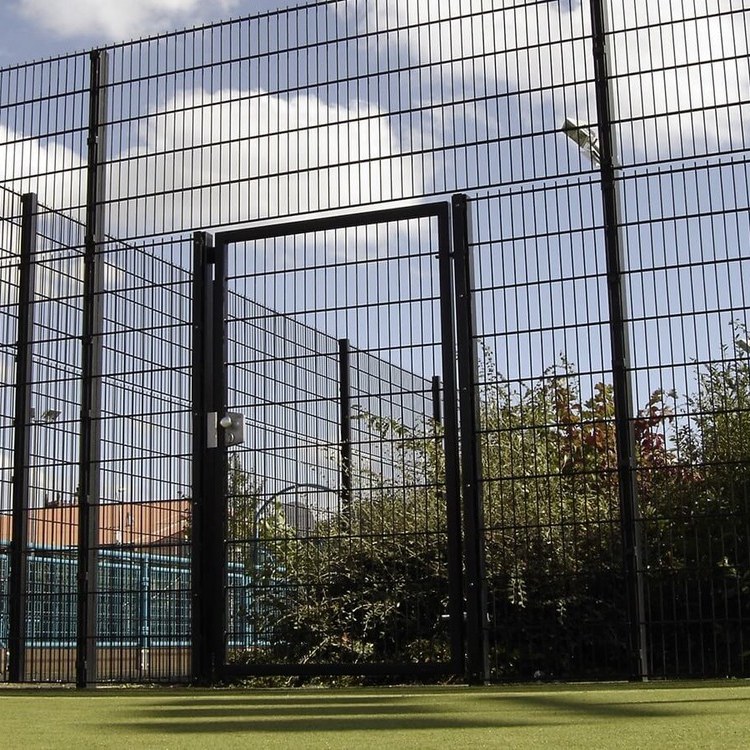

A pedestrian gate enquiry should begin with clear passage width, gate height and the required opening direction. Identify the infill, manual locking arrangement and whether a fixed panel is needed above the opening. Gate leaf width, clear opening and overall post-to-post dimensions are different measurements. The final drawing should define the frame, posts, hinges, stops and lock positions. Access control or powered operation requires a separate agreed scope and is not included by default.
Prepare your enquiry
Staff entrances; service access; commercial premises; perimeter pedestrian access. Select the final system against the site specification and installation design.
A pedestrian gate enquiry should begin with clear passage width, gate height and the required opening direction. Identify the infill, manual locking arrangement and whether a fixed panel is needed above the opening. Gate leaf width, clear opening and overall post-to-post dimensions are different measurements. The final drawing should define the frame, posts, hinges, stops and lock positions. Access control or powered operation requires a separate agreed scope and is not included by default.
Packing quantities, order minimum, lead time, trade terms and payment terms are confirmed in the quotation after the specification and destination are reviewed. Panel bundles, post bundles, gate frames and small fixing packs should have separate counts and package identification.
| Order unit | Panels, posts, fixing sets or gate sets as listed in the quotation. |
|---|---|
| MOQ & lead time | Confirmed for the selected specification, quantity and production schedule. |
| Packing | Agree pallet or frame protection, separators, strapping and package labels before dispatch. |
| Packing quantities & weights | Confirmed from the actual supplied dimensions and packing schedule. |
| Commercial terms | Currency, trade term, named delivery place and payment terms stated in the quotation. |
| Inspection | Agree dimensional, wire, weld, finish and packing checks for the order. |
Send your specification, quantity and destination.
Prepare a product enquiryBuyer questions
No. Clear opening describes the usable passage. The leaf, hinges, frame and post positions require separate dimensions on the approved drawing.
Specify the required wire schedule with your fence order. The approved drawing defines the actual infill, frame and connections. Photographs show configurations and do not verify the wire diameter.
The quotation should list the leaf, gate posts, hinges, locking parts and stops. Ask for closers or access-control interfaces separately; powered operation is not assumed.
Send the product and quantity, destination country or port, selected finish and the relevant panel or gate schedule. Include project drawings, required inspection scope and the target delivery date.
Panel, post, gate and fixing quantities are reviewed separately. The quotation records packing protection, package identification, net and gross weights, commercial terms and the production schedule for the agreed specification.
Complete systemPlan a matched perimeter package with 656 or 868 panels, posts, fixings and gate requirements coordinated around your fence layout.
656A flat twin-wire panel specification with two nominal 6 mm horizontal wires and one 5 mm vertical wire. Request a panel-only quotation by size and finish.
868A flat twin-wire panel specification using two nominal 8 mm horizontal wires and one 6 mm vertical wire for projects that specify the 868 wire schedule.
Gate configurationPlan a double-leaf mesh gate with the clear opening, leaf arrangement, posts and manual hardware defined in one drawing.
