Mesh Panels / Wholesale & project supply
A flat twin-wire panel specification with two nominal 6 mm horizontal wires and one 5 mm vertical wire. Request a panel-only quotation by size and finish.
Twin horizontal wire panel beside a field; reference photo from the Duo6 range.
Photographs illustrate product configurations and connection details; they are not presented as KUNYU customer projects.
At a glance
Add the details you know. Our team can help with the rest.
Product and selected options included in your enquiry.
Technical details
Nominal reference configurations for quotation. The order specification and approved drawing confirm dimensions, tolerances, coating and the complete supply scope.
| Panel form | Flat welded steel mesh with paired horizontal wires; no V-profile bends. |
|---|---|
| Wire schedule | 656: 2 × 6 mm horizontal wires / 5 mm vertical wire, nominal. |
| Nominal mesh H × W | 200 × 50 mm |
| Panel width reference | 2500 mm; specify 2510 mm separately if required by the selected system. |
| Core panel heights | 1830 / 2030 / 2430 mm |
| Additional height enquiries | 1230 / 1430 / 1630 mm; taller configurations require separate project review. |
| Top-edge detail | Project drawing to define projections or a protective cap for the application. |
| Surface treatment | Galvanised or galvanised + polyester powder coating; agree the galvanising sequence and coating requirements. |
| Colour references | RAL 6005 green / RAL 7016 anthracite / RAL 9005 black; other colours by enquiry. |
| Post connection | Matched clips or clamp bars; quote posts and fixing sets separately when ordering panels only. |
| Reference panel H × W | Nominal mesh H × W | Horizontal wires | Vertical wire |
|---|---|---|---|
| 1830 × 2500 mm | 200 × 50 mm | 2 × 6 mm | 5 mm |
| 2030 × 2500 mm | 200 × 50 mm | 2 × 6 mm | 5 mm |
| 2430 × 2500 mm | 200 × 50 mm | 2 × 6 mm | 5 mm |
The schedule is a nominal quotation reference, not stock availability. Confirm width, wire measurement basis and tolerances in the order specification.
The product
656 identifies a twin-wire arrangement: two horizontal wires sit on opposite sides of a vertical wire. This page is intended for buyers who need mesh panels as a separate line item. State the panel width and height, quantity for each size and required finish. Confirm whether the stated wire diameters refer to the steel core or the finished coating. Matching posts and gates can be reviewed separately. A panel dimension should not be used as the installed height or the spacing between post centres.
Prepare your enquiry

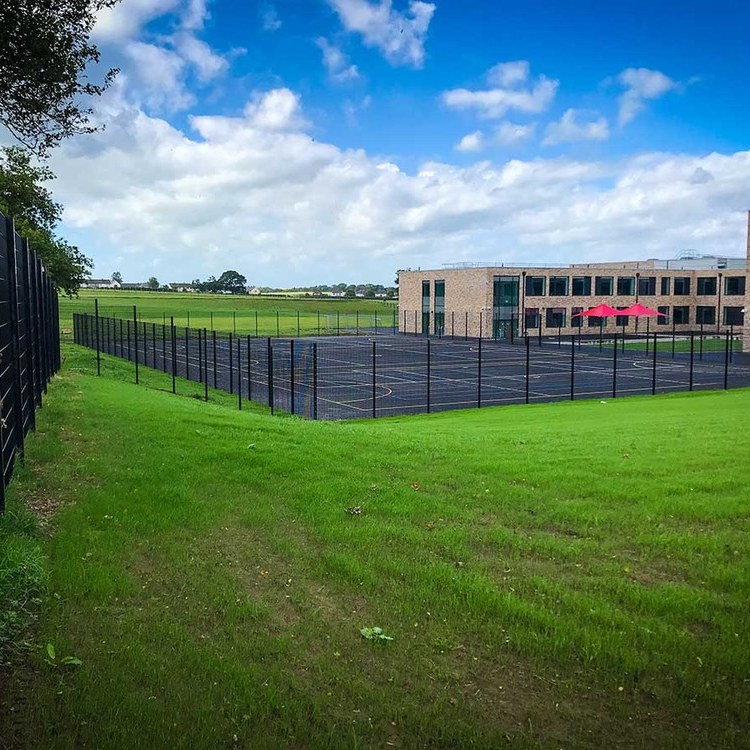

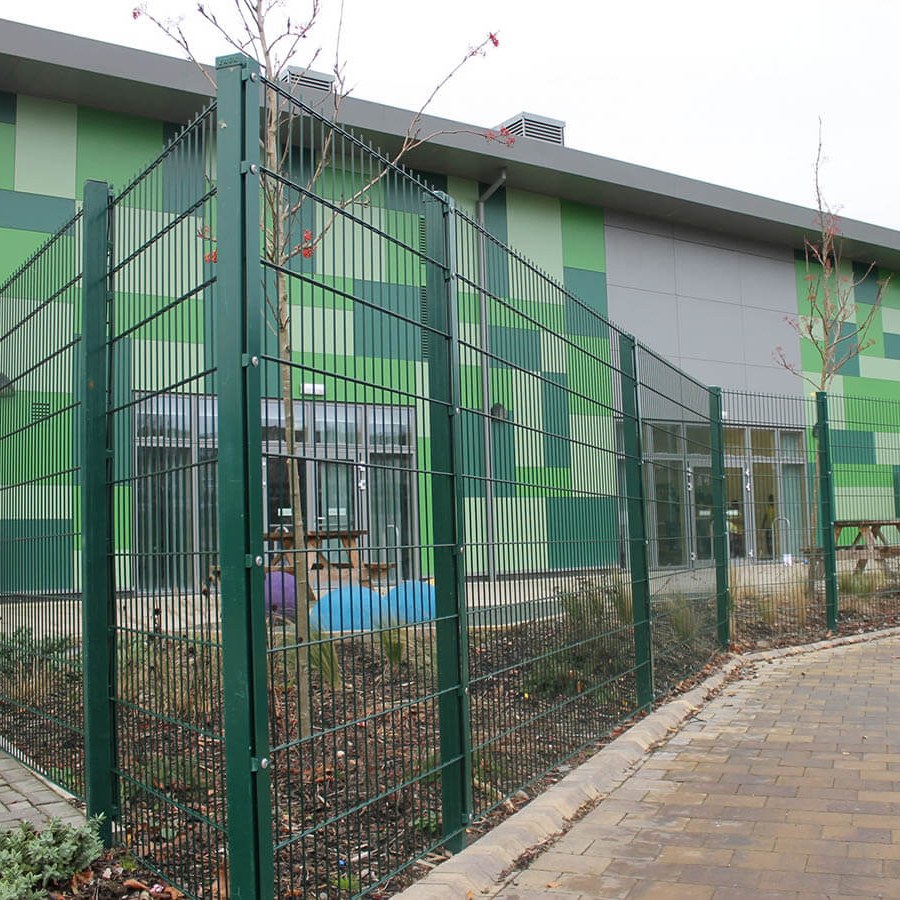

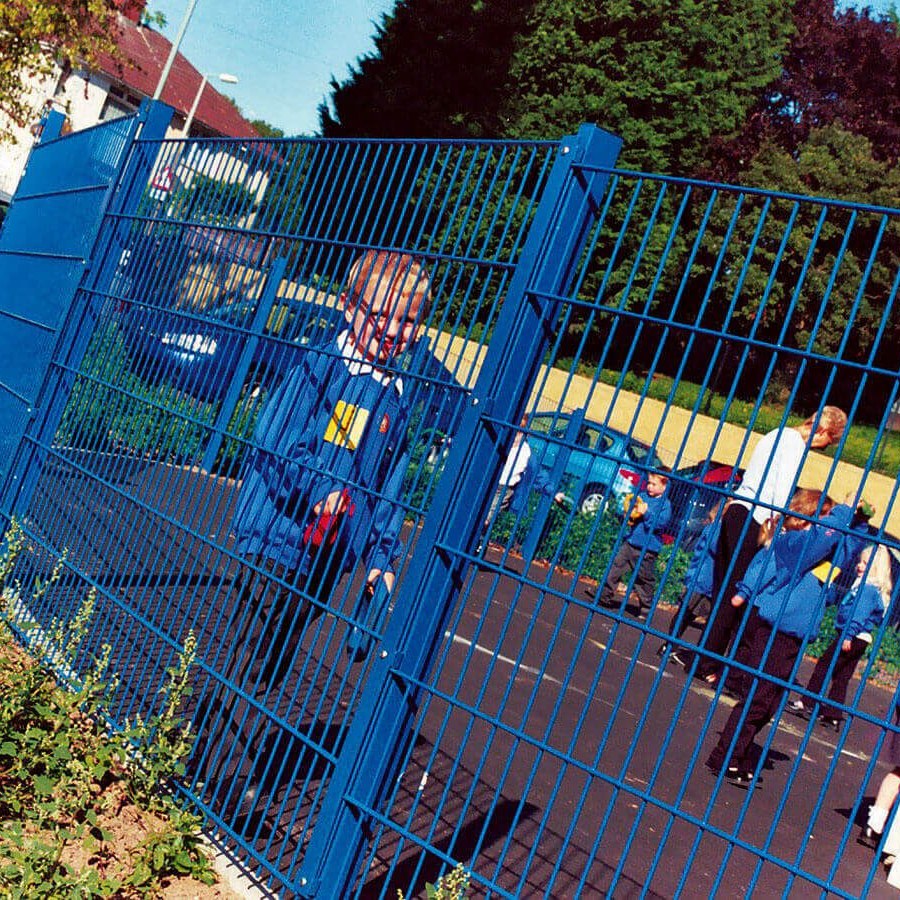

Commercial boundaries; schools; parks; residential developments. Select the final system against the site specification and installation design.
656 identifies a twin-wire arrangement: two horizontal wires sit on opposite sides of a vertical wire. This page is intended for buyers who need mesh panels as a separate line item. State the panel width and height, quantity for each size and required finish. Confirm whether the stated wire diameters refer to the steel core or the finished coating. Matching posts and gates can be reviewed separately. A panel dimension should not be used as the installed height or the spacing between post centres.
Packing quantities, order minimum, lead time, trade terms and payment terms are confirmed in the quotation after the specification and destination are reviewed. Panel bundles, post bundles, gate frames and small fixing packs should have separate counts and package identification.
| Order unit | Panels, posts, fixing sets or gate sets as listed in the quotation. |
|---|---|
| MOQ & lead time | Confirmed for the selected specification, quantity and production schedule. |
| Packing | Agree pallet or frame protection, separators, strapping and package labels before dispatch. |
| Packing quantities & weights | Confirmed from the actual supplied dimensions and packing schedule. |
| Commercial terms | Currency, trade term, named delivery place and payment terms stated in the quotation. |
| Inspection | Agree dimensional, wire, weld, finish and packing checks for the order. |
Send your specification, quantity and destination.
Prepare a product enquiryBuyer questions
It describes two nominal 6 mm horizontal wires positioned on either side of a 5 mm vertical wire. Confirm the wire diameter tolerance and whether coating is included in the measurement.
Specify panels only in the enquiry and list the quantity for each height and width. Matching posts, clips, clamp bars and gates can be itemised separately.
No. This 2D panel uses a nominal 200 × 50 mm mesh. 358 is a separate close-aperture product family. Select the panel and complete system against the required project performance.
State panel height × width in millimetres and specify the mesh as height × width. The panel dimensions are separate from the finished fence height and post centres. Include a drawing when matching an existing system.
Send the product and quantity, destination country or port, selected finish and the relevant panel or gate schedule. Include project drawings, required inspection scope and the target delivery date.
Panel, post, gate and fixing quantities are reviewed separately. The quotation records packing protection, package identification, net and gross weights, commercial terms and the production schedule for the agreed specification.
868A flat twin-wire panel specification using two nominal 8 mm horizontal wires and one 6 mm vertical wire for projects that specify the 868 wire schedule.
Complete systemPlan a matched perimeter package with 656 or 868 panels, posts, fixings and gate requirements coordinated around your fence layout.
Matching componentsMatch posts and fixing sets to the selected twin-wire panel, mounting method and site layout. Confirm dimensions before ordering replacement components.
Gate configurationPlan a single-leaf pedestrian gate around the clear passage width, fence height and locking requirement. Review the mesh infill and gate posts together.
